FF157DRE180LC4詳細信息
FF157DRE180LC4
訂購熱線：13360667204
關鍵詞：160千瓦調速電機減速器一體機_FF157DRE180LC4_FF157DRN180LC4
FF157DRE180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF157DRE180LC4 | 141.80 | 22KW | 10.0rpm | 20100N.m | 1135kg | 93100N | 0.90 |
| FF157DRE180LC4 | 125.14 | 22KW | 12.0rpm | 17800N.m | 1135kg | 100800N | 1.00 |
| FF157DRE180LC4 | 108.49 | 22KW | 14.0rpm | 15400N.m | 1135kg | 107000N | 1.15 |
| FF157DRE180LC4 | 96.53 | 22KW | 15.0rpm | 13700N.m | 1135kg | 1069000N | 1.30 |
| FF157DRE180LC4 | 85.80 | 22KW | 17.0rpm | 12200N.m | 1135kg | 105200N | 1.45 |
| FF157DRE180LC4 | 78.46 | 22KW | 19.0rpm | 11100N.m | 1135kg | 103900N | 1.60 |
| FF157DRE180LC4 | 68.28 | 22KW | 22.0rpm | 9720N.m | 1135kg | 101600N | 1.85 |
| FF157DRE180LC4 | 60.25 | 22KW | 24.0rpm | 8580N.m | 1135kg | 99500N | 2.10 |
| FF157DRE180LC4 | 52.24 | 22KW | 28.0rpm | 7440N.m | 1135kg | 96800N | 2.40 |
| FF157DRE180LC4 | 46.48 | 22KW | 32.0rpm | 6610N.m | 1135kg | 94600N | 2.70 |
| FF157DRE180LC4 | 40.06 | 22KW | 37.0rpm | 5700N.m | 1135kg | 91800N | 3.20 |
| FF157DRE180LC4 | 32.55 | 22KW | 45.0rpm | 4630N.m | 1135kg | 87700N | 3.90 |
FF157DRN180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF157DRN180LC4 | 141.80 | 22KW | 10.0rpm | 20100N.m | 1135kg | 93100N | 0.90 |
| FF157DRN180LC4 | 125.14 | 22KW | 12.0rpm | 17800N.m | 1135kg | 100800N | 1.00 |
| FF157DRN180LC4 | 108.49 | 22KW | 14.0rpm | 15400N.m | 1135kg | 107000N | 1.15 |
| FF157DRN180LC4 | 96.53 | 22KW | 15.0rpm | 13700N.m | 1135kg | 1069000N | 1.30 |
| FF157DRN180LC4 | 85.80 | 22KW | 17.0rpm | 12200N.m | 1135kg | 105200N | 1.45 |
| FF157DRN180LC4 | 78.46 | 22KW | 19.0rpm | 11100N.m | 1135kg | 103900N | 1.60 |
| FF157DRN180LC4 | 68.28 | 22KW | 22.0rpm | 9720N.m | 1135kg | 101600N | 1.85 |
| FF157DRN180LC4 | 60.25 | 22KW | 24.0rpm | 8580N.m | 1135kg | 99500N | 2.10 |
| FF157DRN180LC4 | 52.24 | 22KW | 28.0rpm | 7440N.m | 1135kg | 96800N | 2.40 |
| FF157DRN180LC4 | 46.48 | 22KW | 32.0rpm | 6610N.m | 1135kg | 94600N | 2.70 |
| FF157DRN180LC4 | 40.06 | 22KW | 37.0rpm | 5700N.m | 1135kg | 91800N | 3.20 |
| FF157DRN180LC4 | 32.55 | 22KW | 45.0rpm | 4630N.m | 1135kg | 87700N | 3.90 |
FF157DRE180LC4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

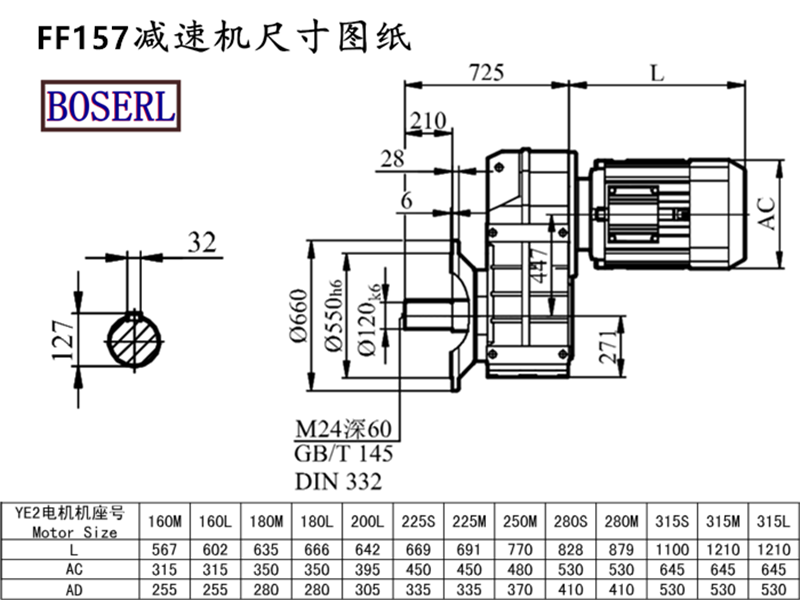

FF157DRE180LC4齒輪減速機馬達安裝尺寸圖紙
FF157DRE180LC4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 160千瓦調速電機減速器一體機 FF157DRE180LC4 FF157DRN180LC4
- 上一條FF157DM180S4
- 下一條FF157DV180S4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| FF157DRE180LC4減速機樣本 |
|
| FF157DRE180LC4減速機三維圖紙 |
|
