R17DV71S4詳細信息
R17DV71S4
訂購熱線：13360667204
關鍵詞：輸出轉數118.5圈/分鐘減速機電機_R17DV71S4_R17DRN71S4_輸出轉數118.5圈一分鐘減速電機_一分鐘轉118.5圈齒輪減速箱馬達_一分鐘轉118.5圈減速器_一分鐘轉118.5圈電機減速機
R17DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R17DV71S4 | 57.35 | 0.25KW | 23.0rpm | 105N.m | 14kg | 156N | 0.80 |
| R17DV71S4 | 53.76 | 0.25KW | 24.0rpm | 99N.m | 14kg | 785N | 0.85 |
| R17DV71S4 | 47.44 | 0.25KW | 27.0rpm | 87N.m | 14kg | 1630N | 1.00 |
| R17DV71S4 | 44.18 | 0.25KW | 29.0rpm | 81N.m | 14kg | 2000N | 1.05 |
| R17DV71S4 | 38.61 | 0.25KW | 34.0rpm | 71N.m | 14kg | 2200N | 1.20 |
| R17DV71S4 | 36.20 | 0.25KW | 36.0rpm | 66N.m | 14kg | 2180N | 1.30 |
| R17DV71S4 | 31.94 | 0.25KW | 41.0rpm | 59N.m | 14kg | 2120N | 1.45 |
| R17DV71S4 | 28.32 | 0.25KW | 46.0rpm | 52N.m | 14kg | 2070N | 1.65 |
| R17DV71S4 | 24.07 | 0.25KW | 54.0rpm | 44N.m | 14kg | 2000N | 1.90 |
| R17DV71S4 | 25.23 | 0.25KW | 52.0rpm | 46N.m | 14kg | 2020N | 1.85 |
| R17DV71S4 | 23.15 | 0.25KW | 56.0rpm | 42N.m | 14kg | 1980N | 2.00 |
| R17DV71S4 | 19.71 | 0.25KW | 66.0rpm | 36N.m | 14kg | 1910N | 2.40 |
| R17DV71S4 | 16.99 | 0.25KW | 77.0rpm | 31N.m | 14kg | 1840N | 2.70 |
| R17DV71S4 | 15.84 | 0.25KW | 82.0rpm | 29N.m | 14kg | 1810N | 2.90 |
| R17DV71S4 | 13.84 | 0.25KW | 94.0rpm | 25N.m | 14kg | 1740N | 3.40 |
| R17DV71S4 | 12.98 | 0.25KW | 100rpm | 24N.m | 14kg | 1720N | 3.60 |
| R17DV71S4 | 11.45 | 0.25KW | 114rpm | 21N.m | 14kg | 1660N | 3.90 |
R17DRN71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R17DRN71S4 | 57.35 | 0.25KW | 23.0rpm | 105N.m | 14kg | 156N | 0.80 |
| R17DRN71S4 | 53.76 | 0.25KW | 24.0rpm | 99N.m | 14kg | 785N | 0.85 |
| R17DRN71S4 | 47.44 | 0.25KW | 27.0rpm | 87N.m | 14kg | 1630N | 1.00 |
| R17DRN71S4 | 44.18 | 0.25KW | 29.0rpm | 81N.m | 14kg | 2000N | 1.05 |
| R17DRN71S4 | 38.61 | 0.25KW | 34.0rpm | 71N.m | 14kg | 2200N | 1.20 |
| R17DRN71S4 | 36.20 | 0.25KW | 36.0rpm | 66N.m | 14kg | 2180N | 1.30 |
| R17DRN71S4 | 31.94 | 0.25KW | 41.0rpm | 59N.m | 14kg | 2120N | 1.45 |
| R17DRN71S4 | 28.32 | 0.25KW | 46.0rpm | 52N.m | 14kg | 2070N | 1.65 |
| R17DRN71S4 | 24.07 | 0.25KW | 54.0rpm | 44N.m | 14kg | 2000N | 1.90 |
| R17DRN71S4 | 25.23 | 0.25KW | 52.0rpm | 46N.m | 14kg | 2020N | 1.85 |
| R17DRN71S4 | 23.15 | 0.25KW | 56.0rpm | 42N.m | 14kg | 1980N | 2.00 |
| R17DRN71S4 | 19.71 | 0.25KW | 66.0rpm | 36N.m | 14kg | 1910N | 2.40 |
| R17DRN71S4 | 16.99 | 0.25KW | 77.0rpm | 31N.m | 14kg | 1840N | 2.70 |
| R17DRN71S4 | 15.84 | 0.25KW | 82.0rpm | 29N.m | 14kg | 1810N | 2.90 |
| R17DRN71S4 | 13.84 | 0.25KW | 94.0rpm | 25N.m | 14kg | 1740N | 3.40 |
| R17DRN71S4 | 12.98 | 0.25KW | 100rpm | 24N.m | 14kg | 1720N | 3.60 |
| R17DRN71S4 | 11.45 | 0.25KW | 114rpm | 21N.m | 14kg | 1660N | 3.90 |

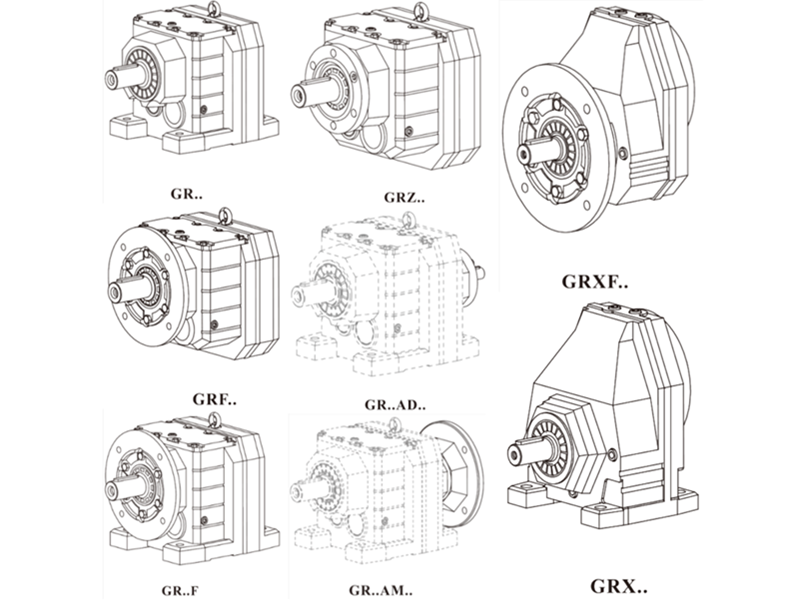

R17DV71S4齒輪減速機馬達類型：
RX17DV71S4單級底腳安裝斜齒輪減速電機
RXF17DV71S4單級B5法蘭安裝斜齒輪減速機電機
R17DV71S4底腳安裝斜齒輪減速電機
R17FDV71S4底腳、B5法蘭安裝斜齒輪減速電機
RF17DV71S4B5法蘭安裝斜齒輪減速電機
RZ17DV71S4B14法蘭安裝斜齒輪減速電機
RX17DRN71S4單級底腳安裝斜齒輪減速電機
RXF17DRN71S4單級B5法蘭安裝斜齒輪減速機電機
R17DRN71S4底腳安裝斜齒輪減速電機
R17FDRN71S4底腳、B5法蘭安裝斜齒輪減速電機
RF17DRN71S4B5法蘭安裝斜齒輪減速電機
RZ17DRN71S4B14法蘭安裝斜齒輪減速電機
R17DV71S4齒輪減速機馬達安裝尺寸圖紙
R17DV71S4齒輪減速機馬達生產廠家：看廠請?zhí)崆叭祛A(yù)約R系列減速機
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出轉數118.5圈/分鐘減速機電機 R17DV71S4 R17DRN71S4 輸出轉數118.5圈一分鐘減速電機 一分鐘轉118.5圈齒輪減速箱馬達 一分鐘轉118.5圈減速器 一分鐘轉118.5圈電機減速機
